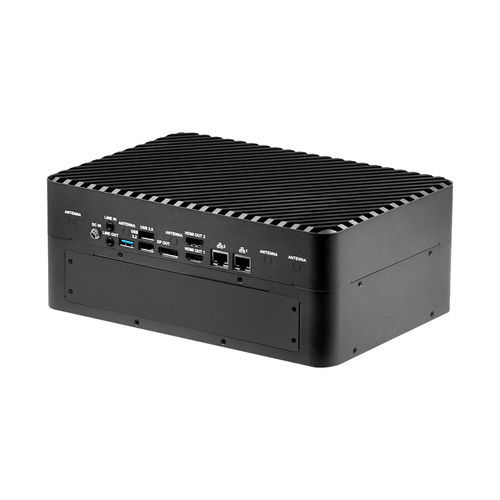

Servidor AI edge AIB-NIAO-S

de mesaNVIDIA® Jetson AGX Orin™ARM® Cortex A78AE

Entorno de desarrollo Kernal 5.10.104-tegra o superior BSP Linux para Tegra(L4T) R35.1 o superior SDK JetPack 5.0.2 o superior Conector E/S externo Comunicación periférica 2×I2C ( Pin Cabezal ) 1×I2S ( Pin Cabezal ) 1×SPI ( Pin Cabecera ) 3×PWM ( Pin Header ) Otros Características Firmware actualizable AutoPower ( Pin Header ) Codificación de vídeo AV1 ( Perfil principal ) ．1×8K30 | 2×4K60 | 4×4K30 | 7×1080p60 | 15×1080p30 H.265 ( Principal, Principal10 ) ．1×8K30 | 2×4K60 | 4×4K30 | 9×1080p60 | 18×1080p30 H.264 ( Baseline, Main, High ) ．1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30 VP9 ( Perfil 0, Perfil 2 ) ．1×4K60 | 3×4K30 | 7×1080p60 | 15×1080p30 AV1 ( Perfil principal ) ．1×8K30 | 3×4K60 | 6×4K30 | 9×1080p60 | 18×1080p30 H.265 ( Principal, Principal10 ) ．1×8K30 | 3×4K60 | 7×4K30 | 11×1080p60 | 22×1080p30 H.264 ( Baseline, Main, High ) ．1×4K60 | 3×4K30 | 6×1080p60 | 13×1080p30 VP9 ( Perfil 0, Perfil 2 ) ．1×8K30 | 3×4K60 | 6×4K30 | 9×1080p60 | 18×1080p30 Descodificación de vídeo AV1 ( UHP ) ．1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30 H.265 ( UHP ) ．1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30 H.264 ( UHP ) ．1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30 NVIDIA Jetson AGX Orin™ 64GB AV1 ( UHP ) ．2×4K60 | 4×4K30 | 8×1080p60 | 16×1080p30 H.265 ( UHP ) ．2×4K60 | 4×4K30 | 8×1080p60 | 16×1080p30 H.264 ( UHP ) ．1×4K60 | 3×4K30 | 7×1080p60 | 14×1080p30 Tarjeta de captura ( Opcional ) 4×12G-SDI 16×TVI / AHD 8×GMSL2 4×6G-SDI Mecánica y medio ambiente Requisitos de alimentación 12~20 V CC
