FG 60AD1D0A

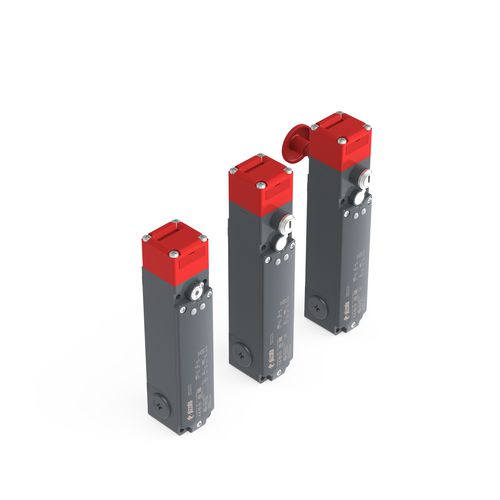

FG series safety switches with separate actuator with lock
Protection degree:
IP67 according to EN 60529 with cable gland having equal or higher protection degree.
Working method:
D working method, locked actuator with de-energized solenoid
Housing:
Metal housing, three M 20x1,5 cable entries
Contact block:
1NO+1NC moved by actuator and 1NO+1NC moved by solenoid
Head:
Rotating head
Power:
24 Vac/dc
LED:
2 green LED switched-on by the solenoid power supply
Actuator:
Without actuator
Positive opening:
Yes
