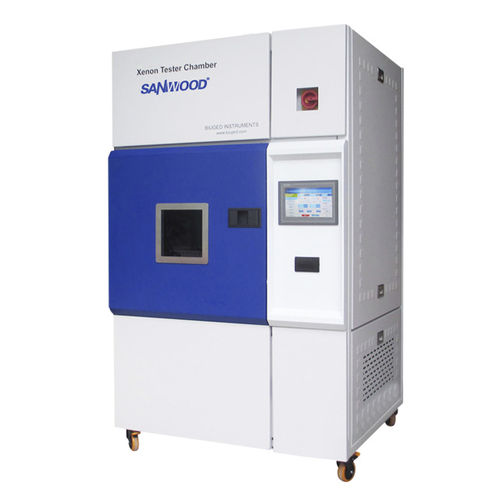

Cámara climática SM- 862

con lámpara de arco de xenón

Xenon lamp weathering test chamber MainTechnical Parameters Ordering Information →SM- 862 Xenon lamp weathering test chamber Technical Item ↓ Xenon Lamp6.5 KW water cooling long arc xenon lamp Light FilterImport originally from ATLAS, can simulate indoor or outdoor sunshine spectrum Exposure Area6,500 cm2 Wave Length of Xenon Spectrum Can select 300-800nm（simulate sunshine，filtrate all wavelength under 300nm ）or 280-800nm （Add UV wave，keep some short-wave of UV） Adjustable Irradiance0.3～1.5 W/ m2 (Single point of control: 340nm) 0.5～2.7 W/ m2 (Single point of control: 420nm) 30 W/m2～150 W/ m2 (Full spectrum :from 300～400nm) Lifetime of lamps2,000 hours Adjustable BPTRT+20℃~110℃ Temperature Stability±1℃ Temperature Uniformity≤2℃ Temperature Declination≤±1℃ Adjustable HumidityLight：10%-85% Dark：10%-95% Rotate speed of sample1～7 r/min（circle as lamp centre） Spray FunctionCan set spray continuous time and spray period Water demandsHigh purity deionized water（Conductivity<2us/cm） Flow of Deionized Water0.2L/min Overall Size1,200*1,200*2,000mm（L*W*H）
