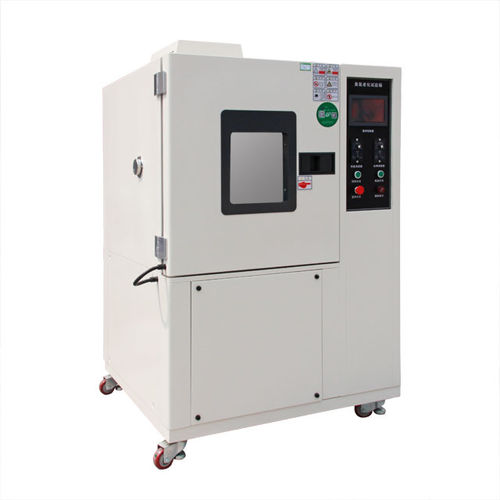

Cámara de pruebas de resistencia al ozono

Inner chamber size(mm) 500(W)*600(H)*500(D) Outer chamber size(mm) 1150(W)*1500(H)*750(D) Temperature range RT+10~+60℃ Temperature fluctuation ±0.5℃ Temperature deviation±2.0℃ Temperature resolution 0.1℃ Relative humidity ≤65%RH Humidity resolution 0.1%R.H Humidity deviation +2/ -3%RH Ozone concentration 0~1500pphm (adjustable) Ozone concentration deviation ≤10% Power 3~5KW Weight 250Kg 6.Control System: controllerColor LCD touch screen controller time unitH. M. S. Can choose up to 9999H Ozone concentration analysisImport concentration analysis regulator 4 ~ 20mA output Ozone generatorHigh pressure silent discharge tube Acquisition SystemImported South Korea imported programmable controller Yu measurement module Heating systemFully independent system, nickel-chromium electric heating water heater Ozone concentrationUK ozone concentration sensor with standard signal output and sampling Ozone generatorSilent discharge tube type ozone generator has the characteristics of low noise and high purity
