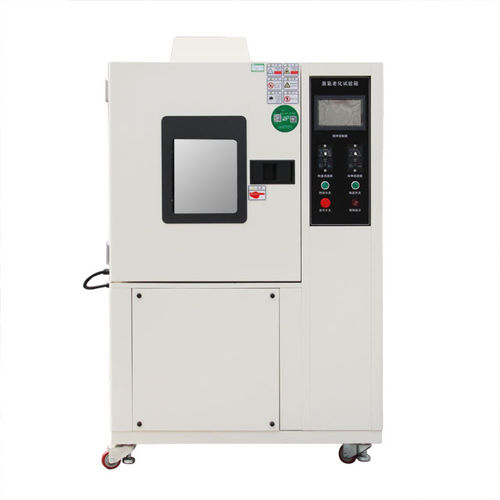

Cámara de pruebas de resistencia al ozono

de envejecimiento

Equipment preparation and structural features: 1.Air circulation device: Built-in circulation air duct, the test airflow is evenly parallel from the top to the bottom of the test piece, in line with the national standard. 2.Integrated ozone concentration and temperature controller (setting mode is light touch button type), high integration, good reliability, LED display, display resolution temperature (0.1 °C), humidity (0.1% RH), ozone concentration (1pphm ), PID set value control, easy to operate. 3.The electromagnetic air pump provides high-quality air source, oil-free drying, and ensures the long-term reliability of the pneumatic system. 4.The dual-light-speed ultraviolet ozone detector is an instrument developed by Shanghai University and our company to meet the internationally recognized standards for ozone detection. It has stable performance and automatic zero control. The ozone-free cold light source has long life and high precision. （Ozone transmitter） （Ozone generator) 8.Security measures: 1、Solid State Translation (SSR) 2 groups (1 set for temperature and humidity); 2、Over temperature protection switch 1 group; 3、 Refrigeration system compressor with over temperature and overload protection device 4、Compressor overcurrent protection switch; 5、Japanese system phase loss protection switch 1 (if the power supply is single phase, there is no such accessory); 6、2 power fast fuses; 7、Fuseless switch 8、Line fuses and fully sheathed terminals
