Inclinómetro 1 eje ZCT-CX05-RC01

digitalMEMScon indicador digital

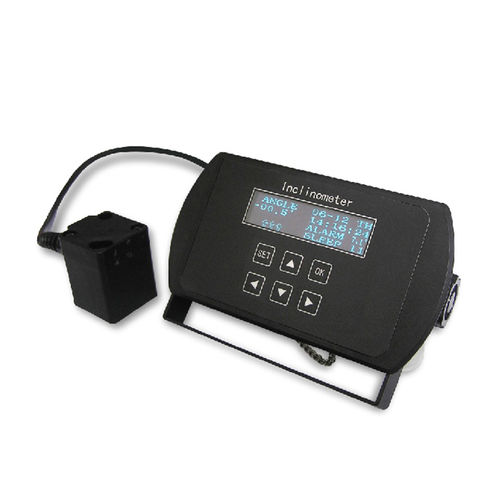

ZCT-CX05-RC02 inclinometer system is designed and produced by ZC Tech. It is with measuring range of +-20°, and made of sensor and display. It is with zero set, alarm angle set function, and the built-in clock chip realize the system log function which can be set and read by the connection PC and USB interface.It can be used as safety monitoring record for construction machines. Technical Specification: Product Model ：ZCT-CX05-RC02 Measuring Range ： - ±20 ° Output ： - RS485 Power： - Voltage(8～36V) Measuring Axis ： - 1 Axis Accuracy ： ±0.2 Resolution ： 0.1° Application ： - construction machines IP Degree ： - IP67
