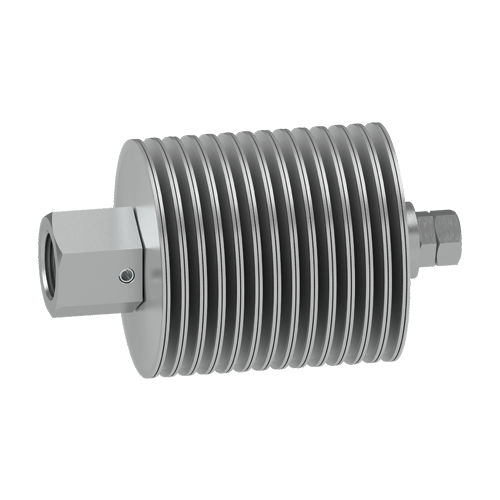

Inyector de vapor SI20

The ADCAMix SI20 is a series of direct steam injectors designed for low noise heating of still or flowing mediums, inside basins and vessels. Steam enters through the inlet connection and passes along the center of the device through holes in the inner rings until reaching the element plates, where most of the steam condenses. The condensate is then discharged at low velocity through the hundreds of serrated apertures in the periphery of the element plates and into the cool medium. Under heavy loads if any steam passes through the periphery of the element plates, it will do so in very small jets, thus condensing in the surrounding liquid with very little noise and vibration. SIZES: 3/4” CONNECTIONS: Female screwed ISO 7/1 Rp
