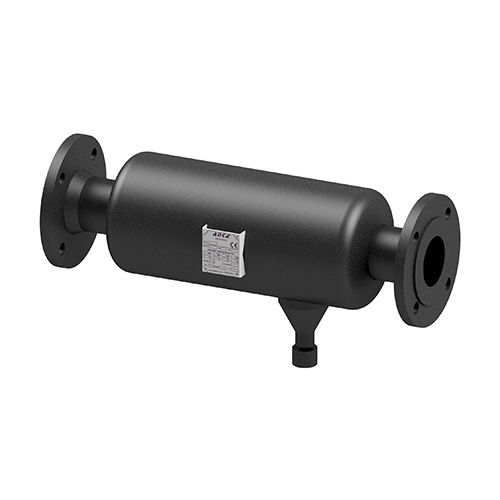

The SH25 series horizontal centrifugal separators remove moisture from steam and compressed air systems. Steam or compressed air pass through the separator and, as a result of centrifugal forces, impact and swirling effects, the particles with a heavier specific gravity, such as water and oil droplets, moisture in suspension, dirt and scale are separated from the fluid. The condensate collected at the bottom of the separator must be automatically drained by a suitable steam or compressed air trap.
MATERIAL:
Carbon steel
SIZES:
1/2” to 6” – DN 15 to DN 150
CONNECTIONS:
Flanged EN PN 16 or PN 40
Flanged ASME Class 150 or 300
